The Warren and The Nest

A timber community building designed around food redistribution, social vulnerability and adaptive reuse.

Year2023StatusCompleteCategoryUniversity of Edinburgh
Project typeFood Charity Shelter · Leith, Edinburgh
Architectural DesignSustainable DesignTimber ConstructionMaterial ResearchEnvironmental DesignPhysical PrototypingTechnical Detailing

A timber community building for an Edinburgh food charity, combining adaptive reuse, passive environmental design and material prototyping.

University of Edinburgh
The Warren and The Nest
Overview

The Warren and The Nest was developed as a new home for an Edinburgh-based food charity in Leith, exploring how architecture could respond to food insecurity while creating an accessible community space.

The project combines research into local food flows, passive environmental design and timber construction. Existing stone structures were retained and adapted with a new timber framework, while material research and physical prototyping informed the building’s structural and tectonic strategy.

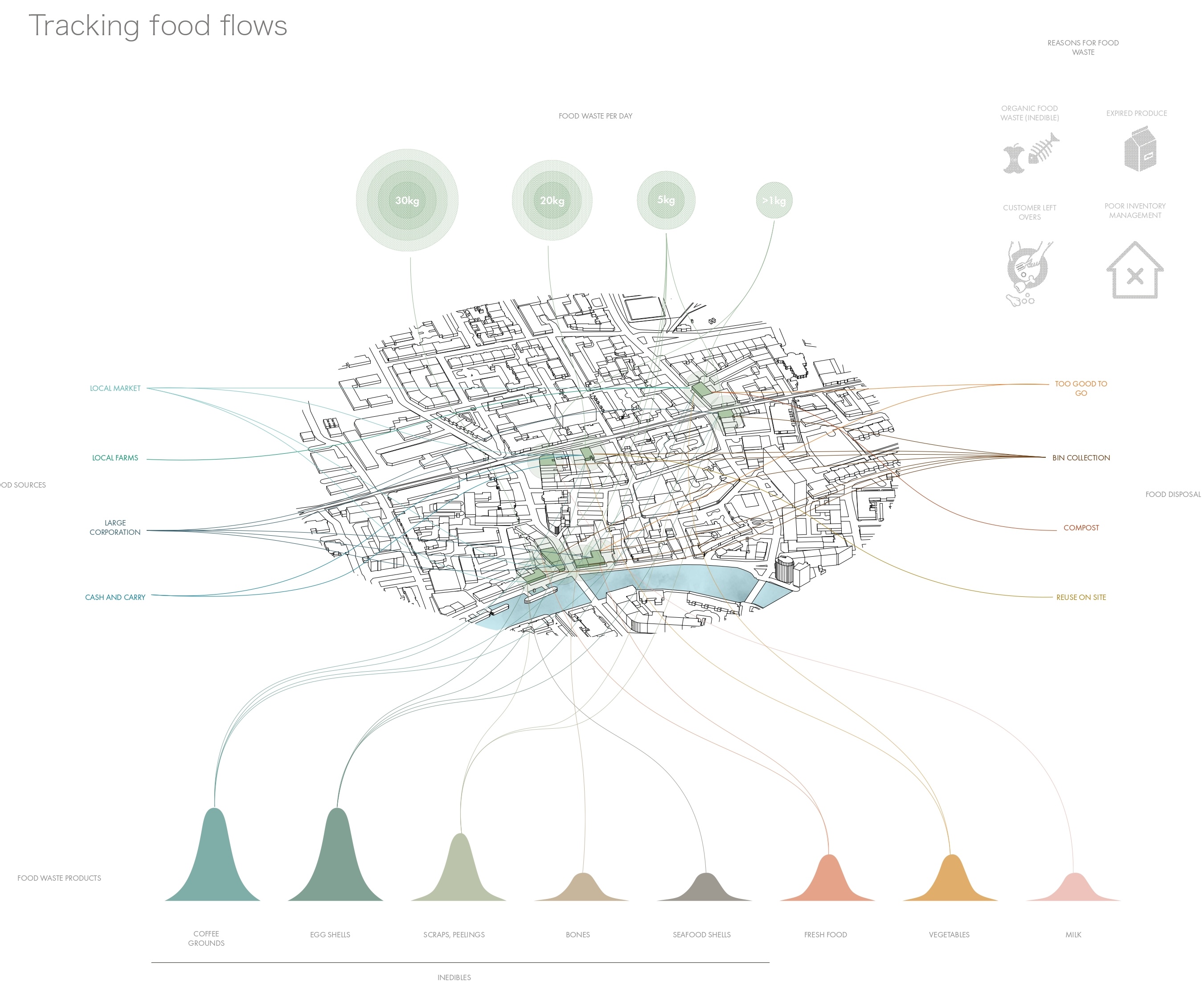

The Warren and The Nest tracking food flows research drawing

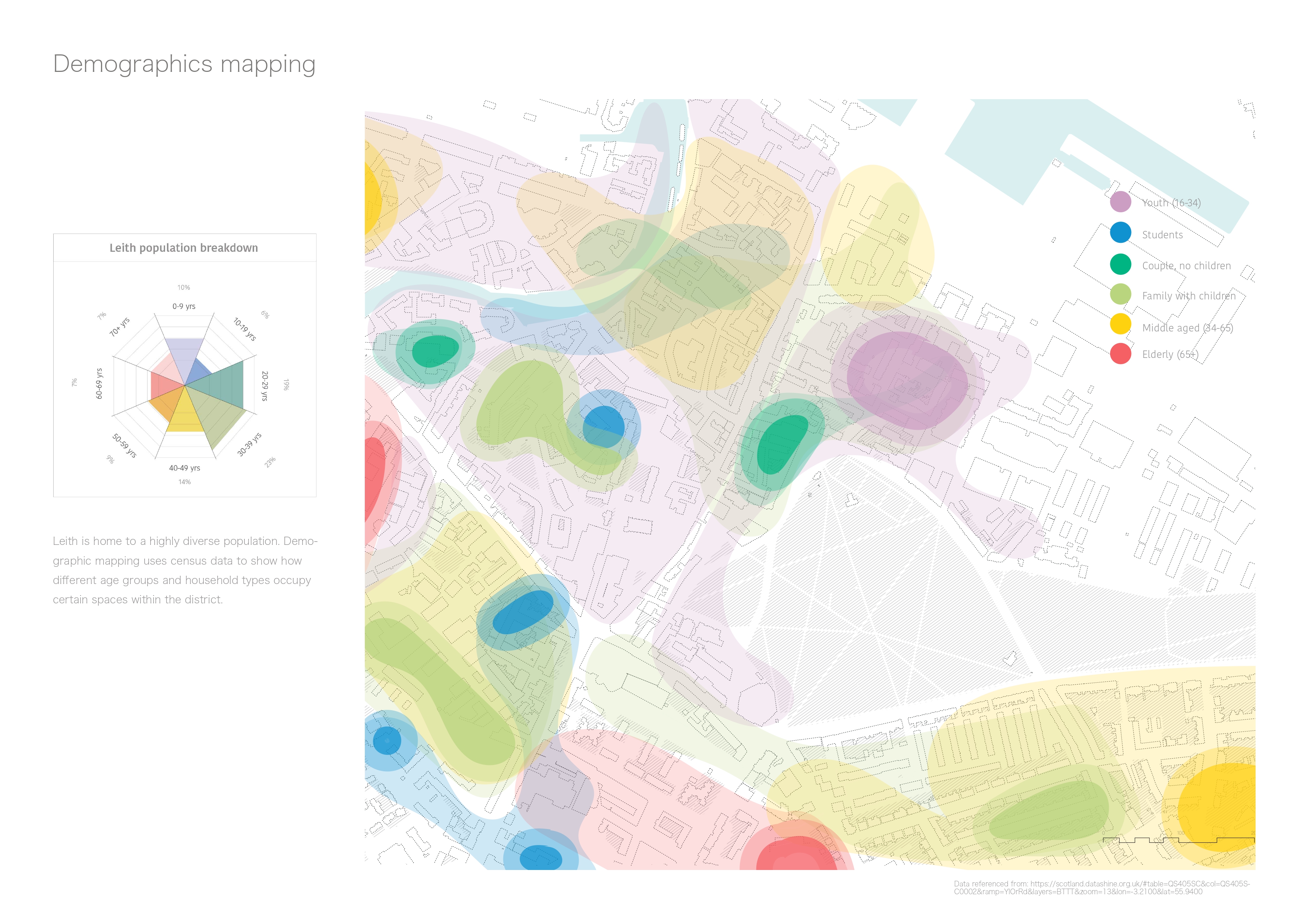

The Warren and The Nest demographics mapping drawing

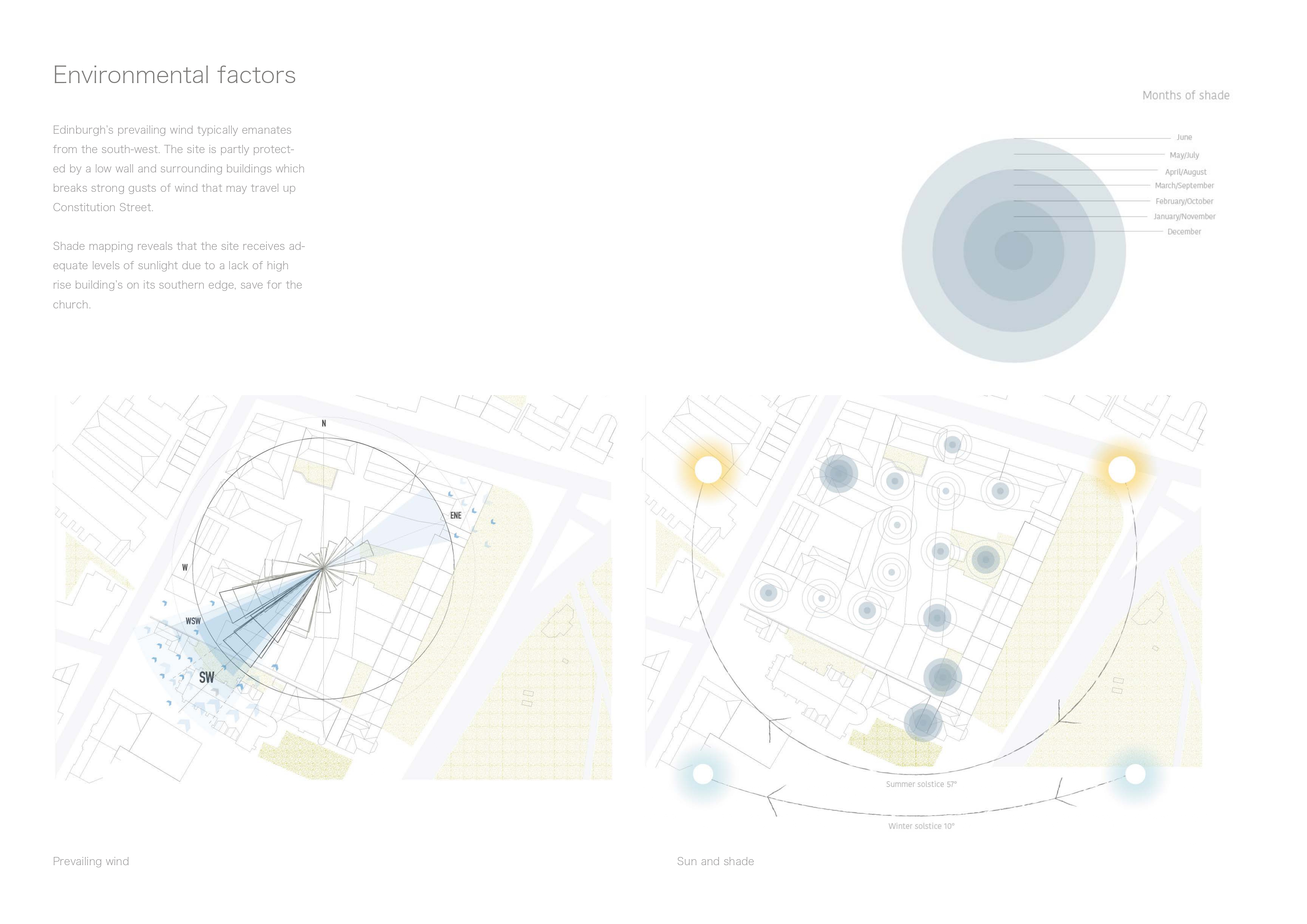

The Warren and The Nest environmental factors analysis
Project Process
01
Context

Understand the community

Research into local businesses, food flows, food waste and users informed how the building could support the surrounding community.

02
Response

Design around people and climate

The proposal combines café, market and learning spaces with passive strategies for daylight, ventilation and temperature control.

03
Material

Investigate timber

Research into timber species, material lifecycles and Glulam and CLT construction systems informed the material and structural approach.

04
Test

Prototype construction

Physical models and a small timber pavilion were used to investigate structural assemblies, joints, connections and foundations.

05
Resolve

Develop the tectonic strategy

Existing stone walls were retained for their historic and thermal value and combined with a new internal timber framework, developed through material specifications and construction detailing.

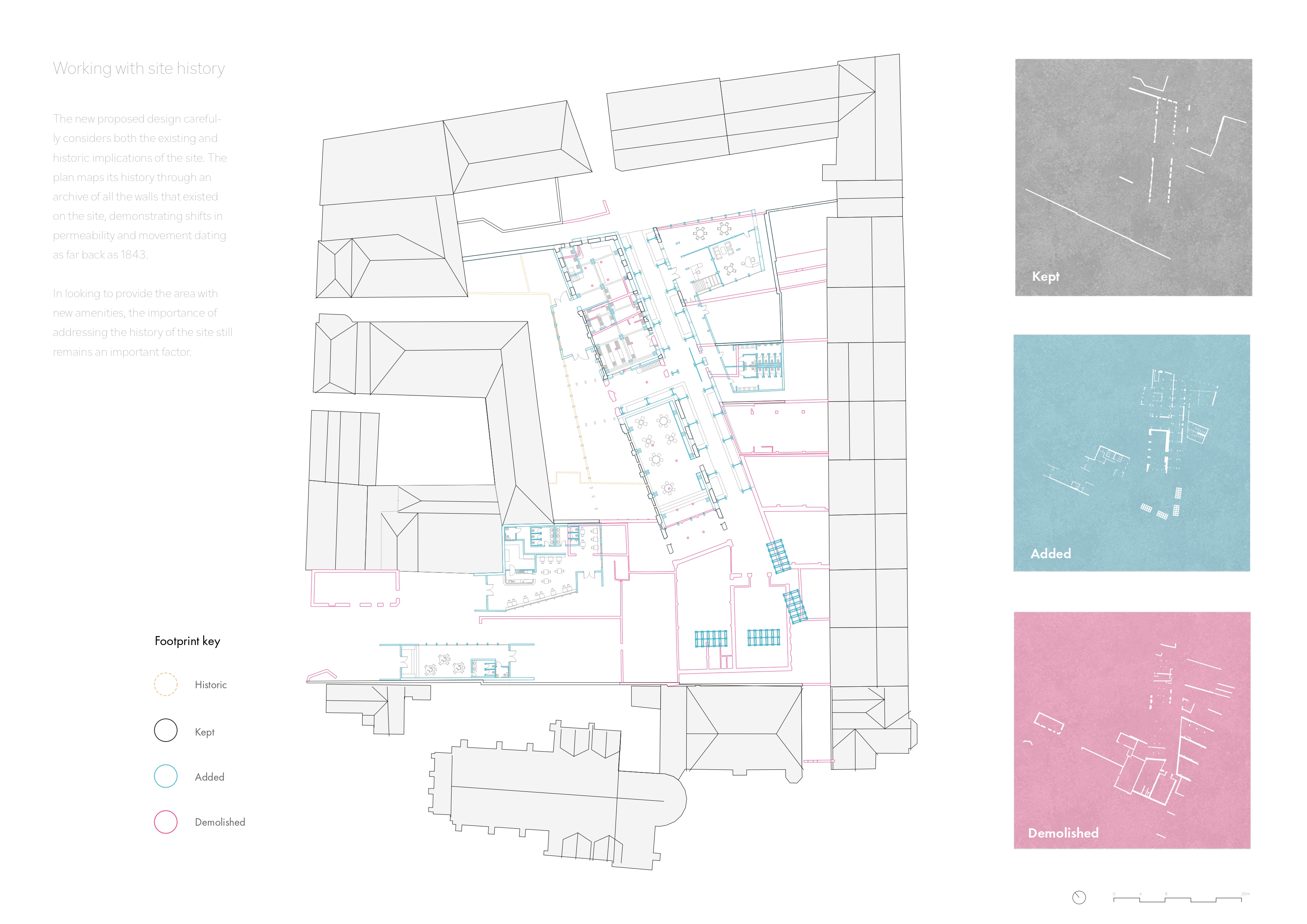

The Warren and The Nest working with site history drawing

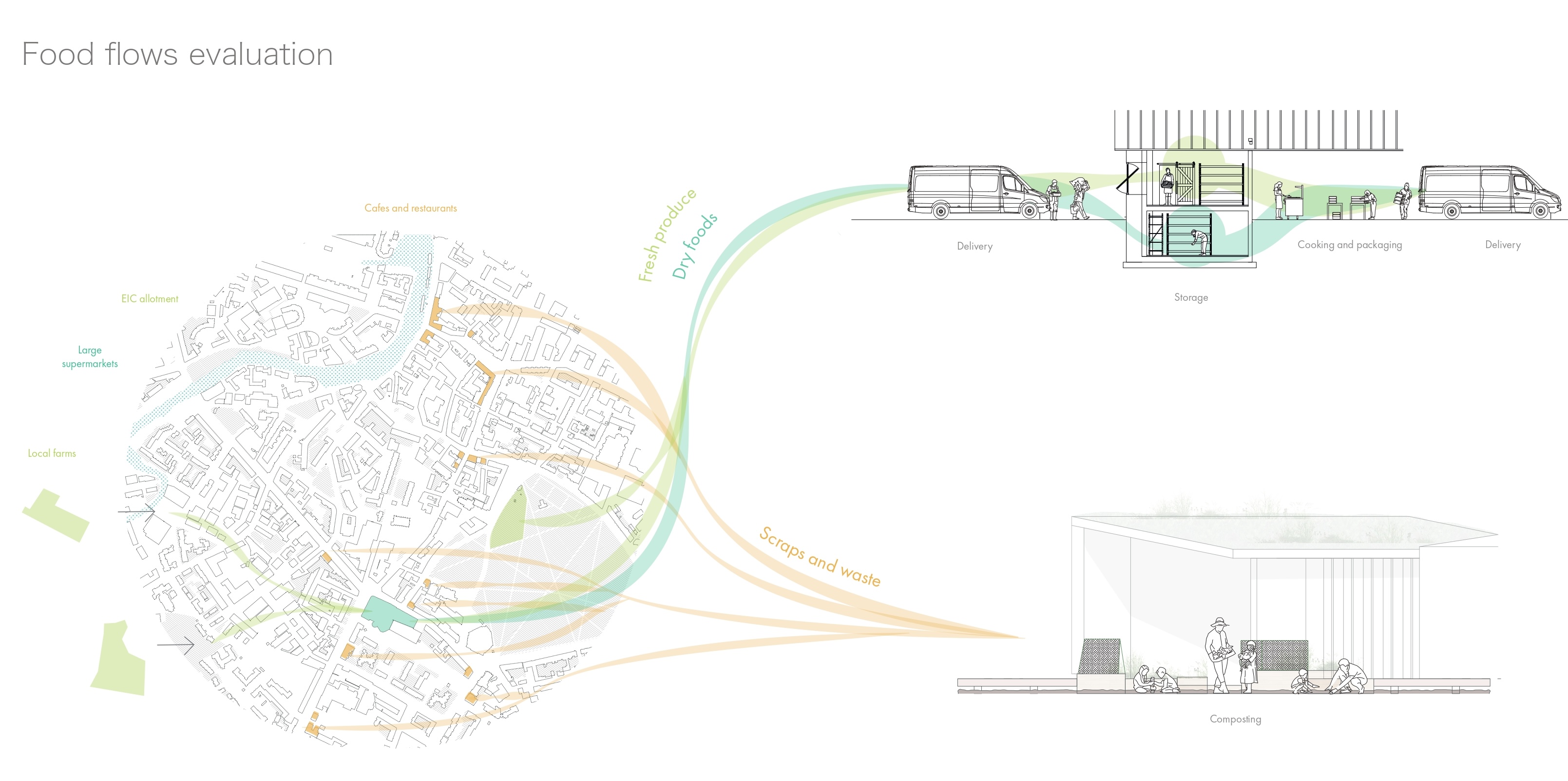

The Warren and The Nest food flows evaluation drawing

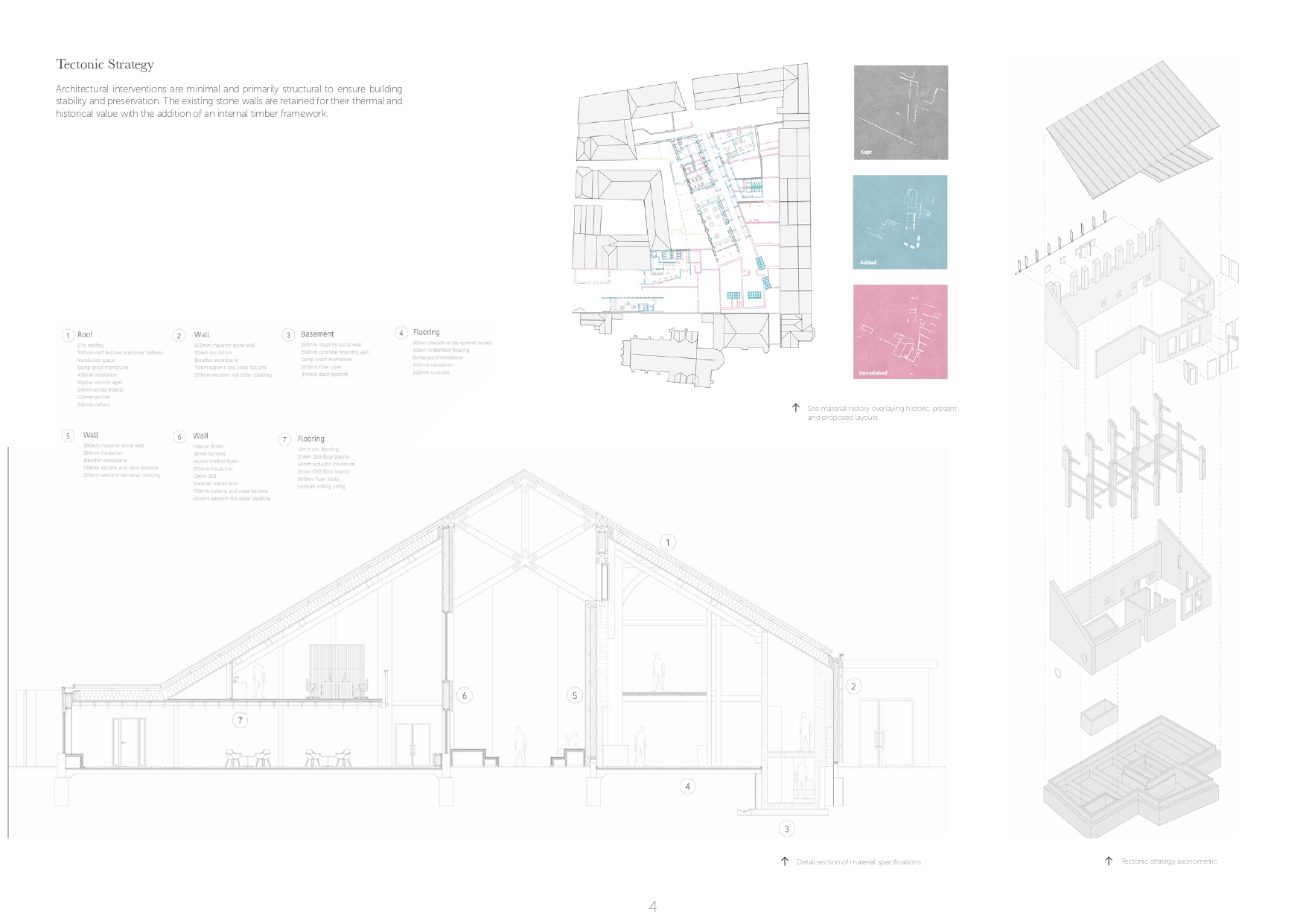

The Warren and The Nest tectonic strategy portfolio sheet
The Warren and The Nest timber species research graphic

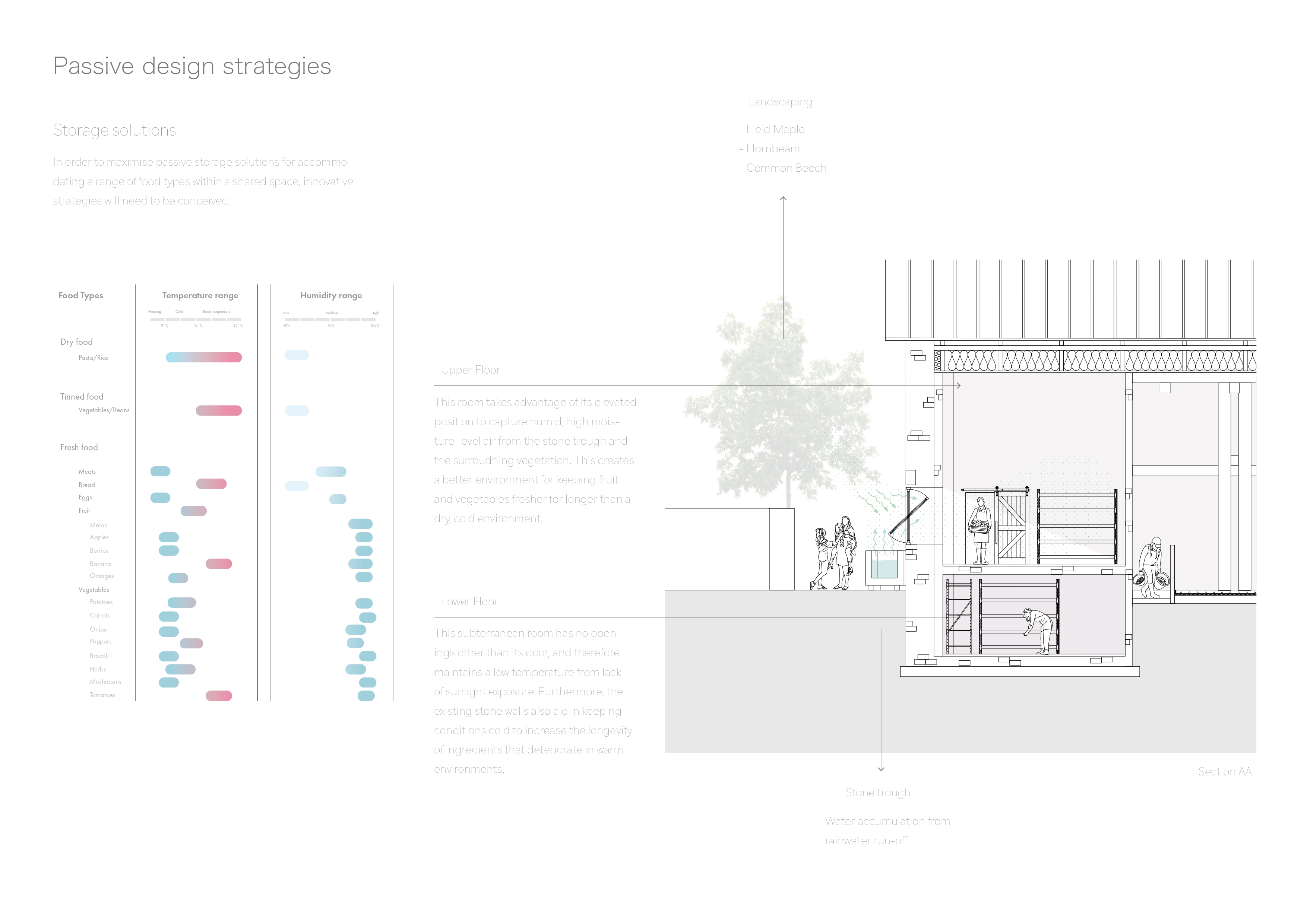

The Warren and The Nest passive design strategies section

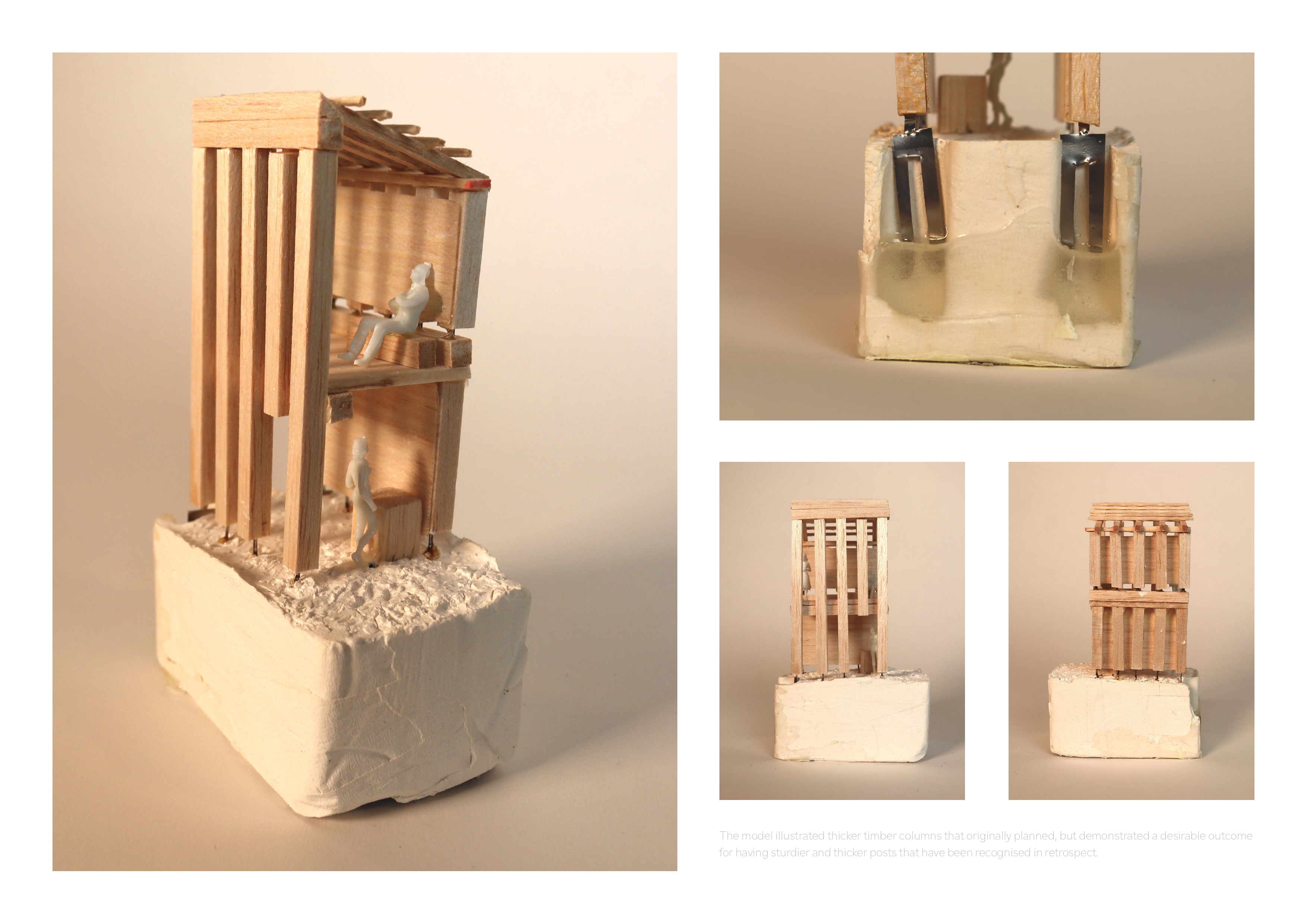

The Warren and The Nest small timber pavilion prototype model

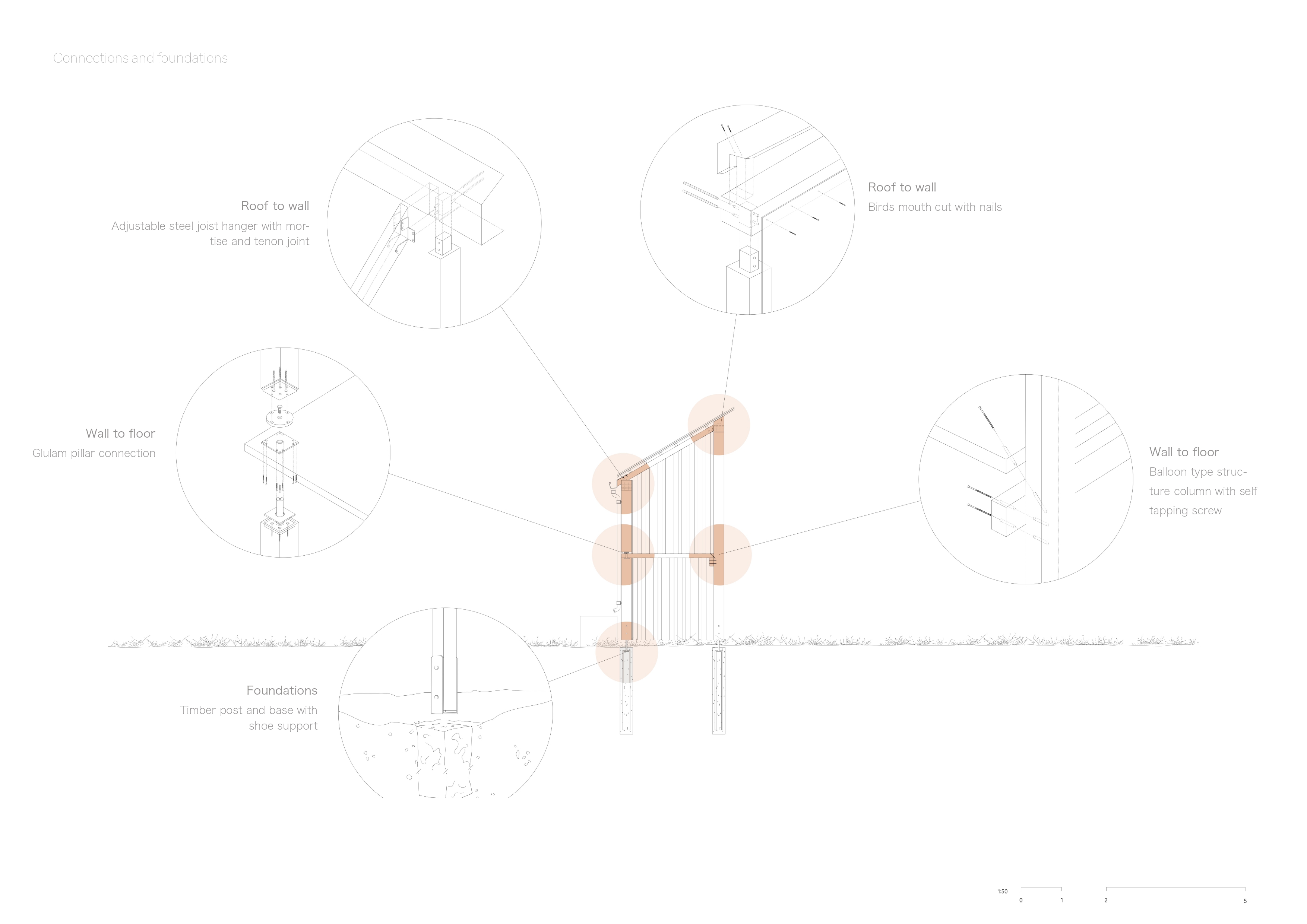

The Warren and The Nest connections and foundations drawing

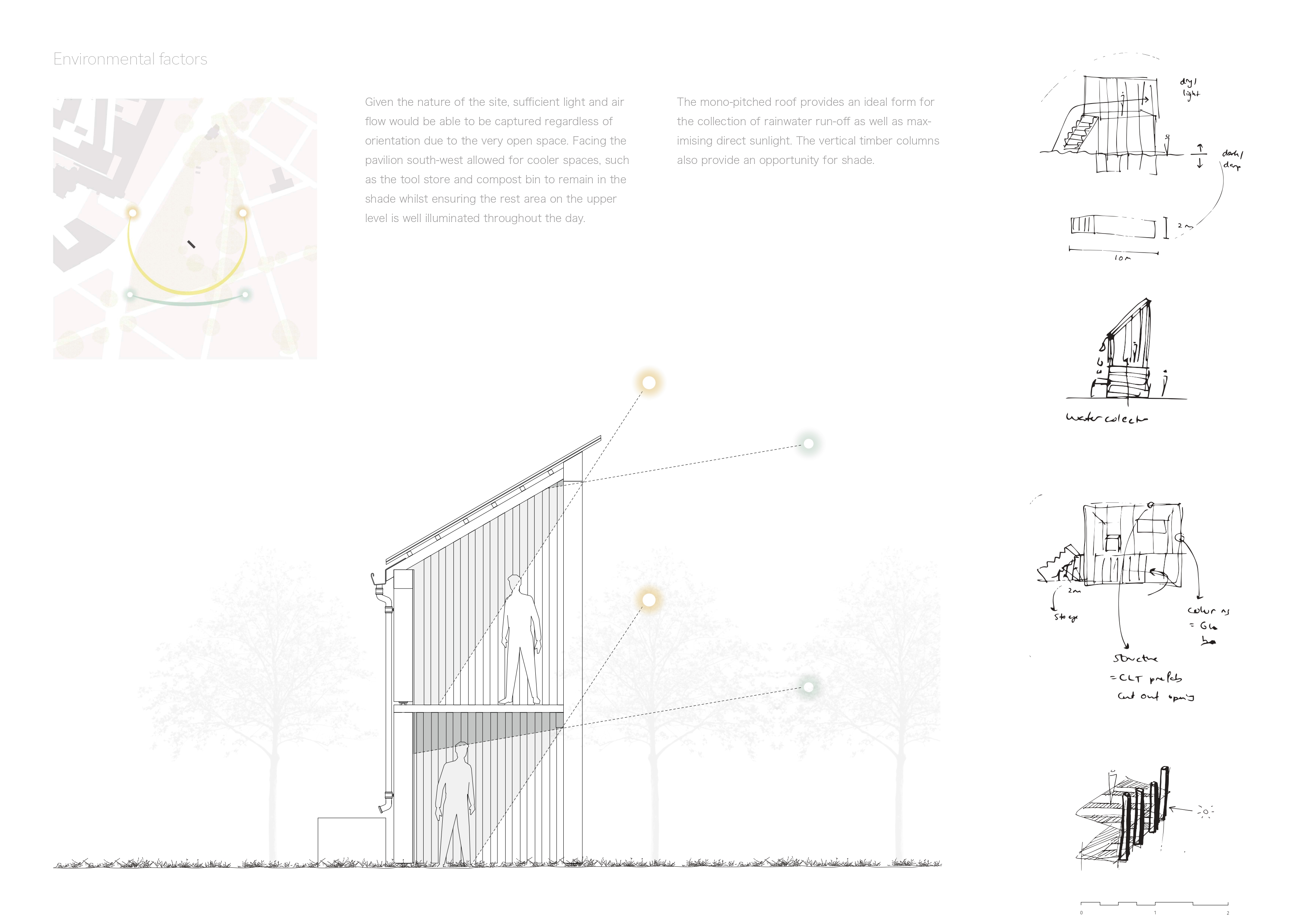

The Warren and The Nest environmental pavilion study
